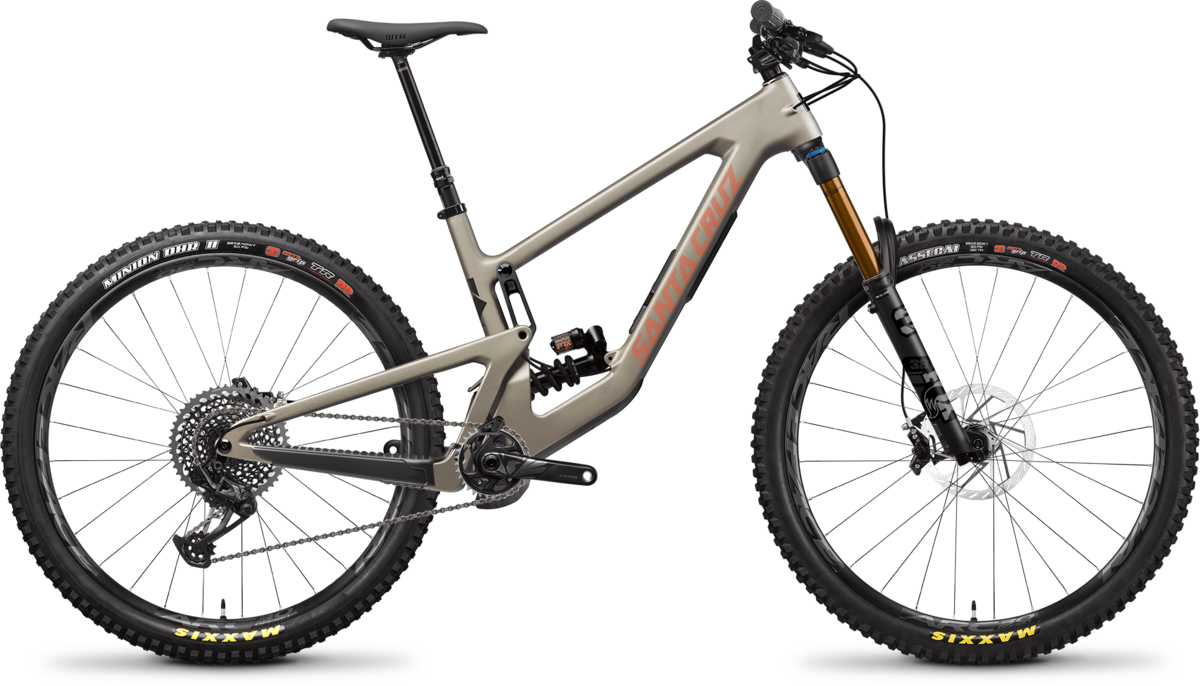

Santa Cruz Megatower 2 CC X01 Coil

Santa Cruz Megatower 2 CC X01 Coil
  • Color: Matte Nickel
  • Color: Trans Blue
Please select options

Details

BIGGER. BADDER. BETTER. With big 29-inch wheels, a long reach, 165mm of rear Virtual Pivot Point (VPP) suspension paired with a 170mm-travel fork, the Megatower is one big, bad monster bike. Capable on gnarly downhill terrain, the Mega's also got a pedalable pedigree to get you back to the top.

High Setting

Geo Chart

Geometry Chart:
SizeSmallMediumLargeX-LargeXX-Large
REACH (mm) 430 455 475 495 520
STACK (mm) 616 625 638 656 670
HT-ANGLE 63.8 63.8 63.8 63.8 63.8
HT-LENGTH (mm) 90 100 115 135 150
ST-ANGLE 77.2 77.4 77.8 77.8 77.8
ST-LENGTH (mm) 380 405 430 460 500
REAR-CENTER (mm) 436 437 440 443 447
FRONT-CENTER (mm) 770 799 826 855 886
BB-HEIGHT (mm) 346 346 346 346 346
BB-DROP (mm) 27 27 27 27 27
WHEELBASE (mm) 1206 1236 1266 1298 1333
TOPTUBE-LENGTH (mm) 570 594 613 637 666
STANDOVER (mm) 709 716 723 722 724

Low Setting

Geo Chart

Geometry Chart:
SizeSmallMediumLargeX-LargeXX-Large
REACH (mm) 427 452 472 492 517
STACK (mm) 618 627 640 658 672
HT-ANGLE 63.5 63.5 63.5 63.5 63.5
HT-LENGTH (mm) 90 100 115 135 150
ST-ANGLE 77 77.2 77.5 77.5 77.5
ST-LENGTH (mm) 380 405 430 460 500
REAR-CENTER (mm) 437 438 441 444 448
FRONT-CENTER (mm) 770 799 826 855 886
BB-HEIGHT (mm) 343 343 343 343 343
BB-DROP (mm) 30 30 30 30 30
WHEELBASE(mm) 1206 1237 1266 1298 1334
TOPTUBE-LENGTH (mm) 570 595 613 638 667
STANDOVER (mm) 705 712 718 717 720

Specs

Frame Carbon CC 29" 165mm Travel VPP™
Fork FOX 38 Float Factory, 170mm
Rear Shock FOX DH X2 Factory Coil 2-Position Lever 230x62.5
Rims RaceFace ARC Offset 30 29" Rims
Hubs Front: Industry Nine 1/1, 110x15, 6 Bolt, 28h
Rear: Industry Nine 1/1, 148x12, XD, 6 Bolt, 28h
Spokes Sapim Race
Tires Front: Maxxis Assegai 29"x2.5", 3C MaxxGRIP, Double Down
Rear: Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, DoubleDown
Bottom Bracket SRAM DUB 68/73mm Threaded BB
Crankset SRAM X1 Eagle 148 DUB 30t
Shifters SRAM X01 Eagle, 12spd
Rear Derailleur SRAM X01 Eagle, 12spd
Cassette/Freewheel SRAM XG1295 Eagle, 12spd, 10-50t
Chain SRAM X01 Eagle, 12spd
Brakes SRAM Code RSC
Rotors SRAM HS2 Rotor 200mm
Handlebars Santa Cruz 35 Carbon Bar, 800mm
Tape/Grips Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnar
Stem Burgtec Enduro MK3 42mm
Headset Cane Creek 40 IS Integrated Headset
Seatpost RockShox Reverb Stealth, 31.6 or OneUp Dropper V2
Saddle WTB Silverado Team Saddle or WTB Volt
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Matte Nickel / Small 192219217093 58-22264-157-2-759-867301
Matte Nickel / Large 192219217178 58-22264-157-4-759-867301 210000119616
Matte Nickel / X-Large 192219217215 58-22264-157-5-759-867301
Matte Nickel / XX-Large 192219217253 58-22264-157-6-759-867301
Trans Blue / Small 192219217116 58-22264-157-2-760-867301
Trans Blue / Medium 192219217154 58-22264-157-3-760-867301
Trans Blue / Large 192219217192 58-22264-157-4-760-867301
Trans Blue / X-Large 192219217239 58-22264-157-5-760-867301
Trans Blue / XX-Large 192219217277 58-22264-157-6-760-867301
