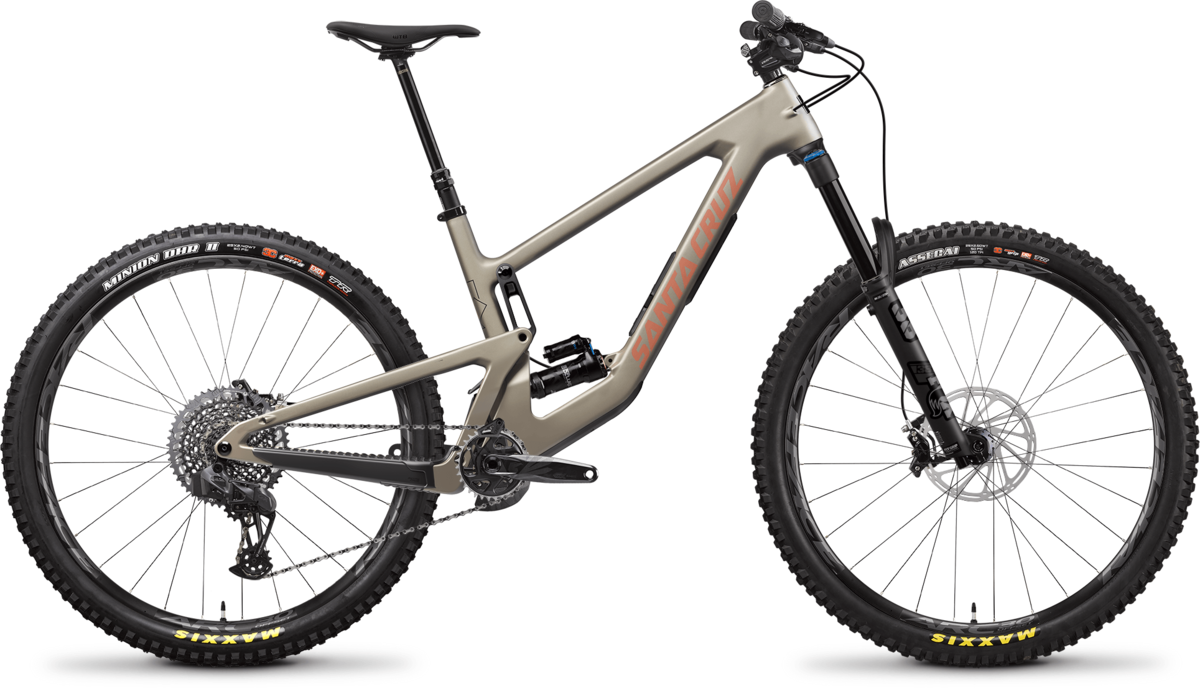

Santa Cruz Megatower 2 C GX AXS

Santa Cruz Megatower 2 C GX AXS
  • Color: Matte Nickel
  • Color: Trans Blue
$5,999.00 - $8,499.00
$8,499.00
Color:
Size: Select size
Please select options Unavailable

Details

BIGGER. BADDER. BETTER. With big 29-inch wheels, a long reach, 165mm of rear Virtual Pivot Point (VPP) suspension paired with a 170mm-travel fork, the Megatower is one big, bad monster bike. Capable on gnarly downhill terrain, the Mega's also got a pedalable pedigree to get you back to the top.

High Setting

Geo Chart

Geometry Chart:
SizeSmallMediumLargeX-LargeXX-Large
REACH (mm) 430 455 475 495 520
STACK (mm) 616 625 638 656 670
HT-ANGLE 63.8 63.8 63.8 63.8 63.8
HT-LENGTH (mm) 90 100 115 135 150
ST-ANGLE 77.2 77.4 77.8 77.8 77.8
ST-LENGTH (mm) 380 405 430 460 500
REAR-CENTER (mm) 436 437 440 443 447
FRONT-CENTER (mm) 770 799 826 855 886
BB-HEIGHT (mm) 346 346 346 346 346
BB-DROP (mm) 27 27 27 27 27
WHEELBASE (mm) 1206 1236 1266 1298 1333
TOPTUBE-LENGTH (mm) 570 594 613 637 666
STANDOVER (mm) 709 716 723 722 724

Low Setting

Geo Chart

Geometry Chart:
SizeSmallMediumLargeX-LargeXX-Large
REACH (mm) 427 452 472 492 517
STACK (mm) 618 627 640 658 672
HT-ANGLE 63.5 63.5 63.5 63.5 63.5
HT-LENGTH (mm) 90 100 115 135 150
ST-ANGLE 77 77.2 77.5 77.5 77.5
ST-LENGTH (mm) 380 405 430 460 500
REAR-CENTER (mm) 437 438 441 444 448
FRONT-CENTER (mm) 770 799 826 855 886
BB-HEIGHT (mm) 343 343 343 343 343
BB-DROP (mm) 30 30 30 30 30
WHEELBASE(mm) 1206 1237 1266 1298 1334
TOPTUBE-LENGTH (mm) 570 595 613 638 667
STANDOVER (mm) 705 712 718 717 720

Specs

Frame Carbon C 29" 165mm Travel VPP™
Fork FOX 38 Float Performance Elite, 170mm
Rear Shock RockShox Super Deluxe Select+ 230x62.5
Rims RaceFace ARC Offset 30 29" Rims
Hubs Front: Industry Nine 1/1, 110x15, 6 Bolt, 28h
Rear: Industry Nine 1/1, 148x12, XD, 6 Bolt, 28h
Spokes Sapim Race
Tires Front: Maxxis Assegai 29"x2.5" EXO+, 3C MaxxGrip
Rear: Maxxis Minion DHR II 29"x2.4" EXO+, 3C MaxxTerra
Bottom Bracket SRAM DUB 68/73mm Threaded BB
Crankset SRAM GX Eagle 148 DUB 30t
Shifters SRAM GX AXS Shifter
Rear Derailleur SRAM GX Eagle AXS, 12spd
Cassette/Freewheel SRAM XG1275 Eagle, 12spd, 10-50t
Chain SRAM GX Eagle, 12spd
Brakes SRAM Code RSC
Rotors Avid Centerline 200mm
Handlebars Santa Cruz 35 Carbon Bar, 800mm
Tape/Grips Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnar
Stem Burgtec Enduro MK3 42mm
Headset Cane Creek 40 IS Integrated Headset
Seatpost RockShox Reverb Stealth, 31.6 or OneUp Dropper V2
Saddle WTB Silverado Medium Cromoly SL Fusion Saddle or WTB Volt

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Matte Nickel / Small 192219216485 58-22263-163-2-759-837201
Matte Nickel / Medium 192219216560 58-22263-163-3-759-837201
Matte Nickel / Large 192219216645 58-22263-163-4-759-837201
Matte Nickel / X-Large 192219216720 58-22263-163-5-759-837201 210000122849
Matte Nickel / XX-Large 192219216805 58-22263-163-6-759-837201
Trans Blue / Small 192219216522 58-22263-163-2-760-837201
Trans Blue / Medium 192219216607 58-22263-163-3-760-837201
Trans Blue / Large 192219216683 58-22263-163-4-760-837201
Trans Blue / X-Large 192219216768 58-22263-163-5-760-837201
Trans Blue / XX-Large 192219216843 58-22263-163-6-760-837201
